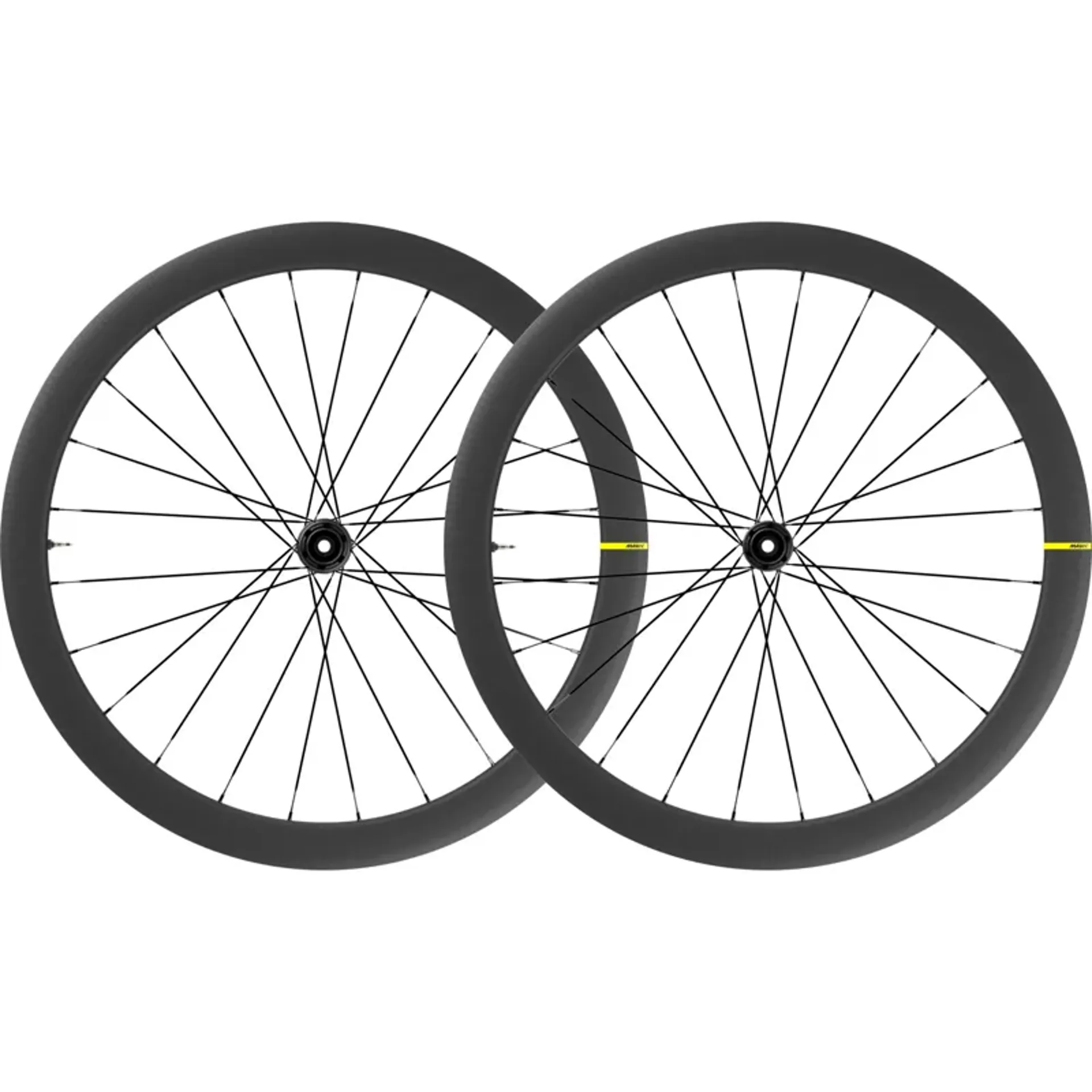

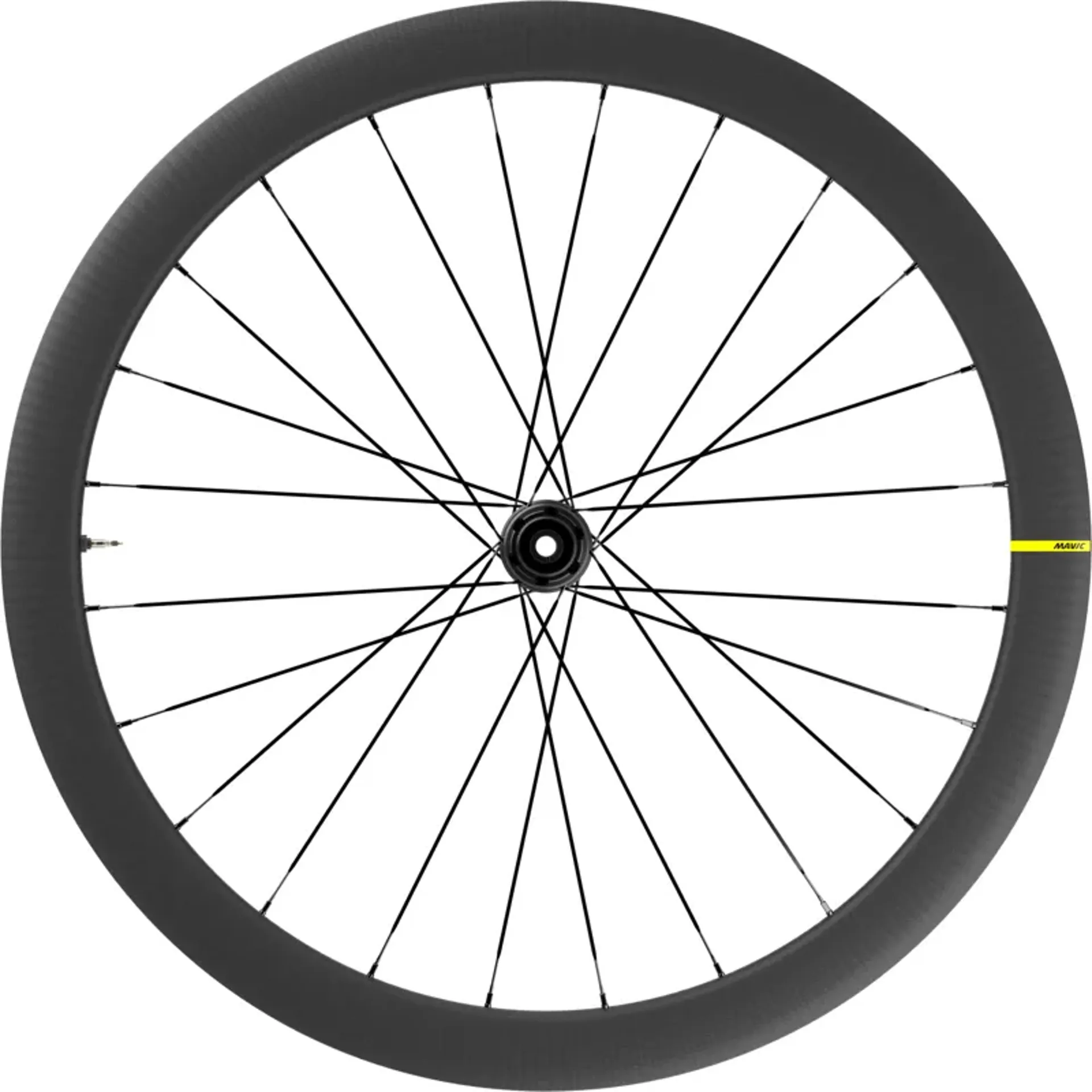

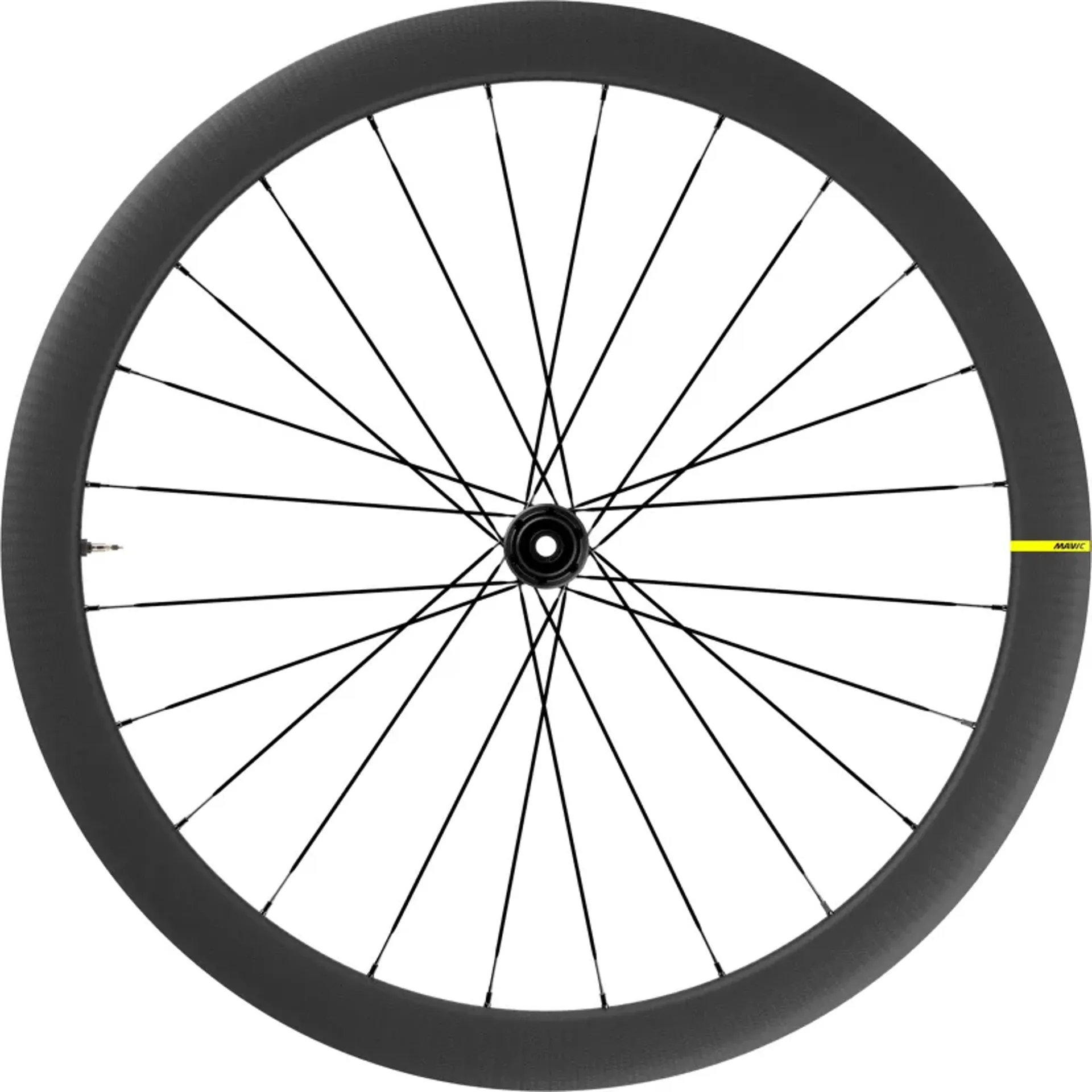

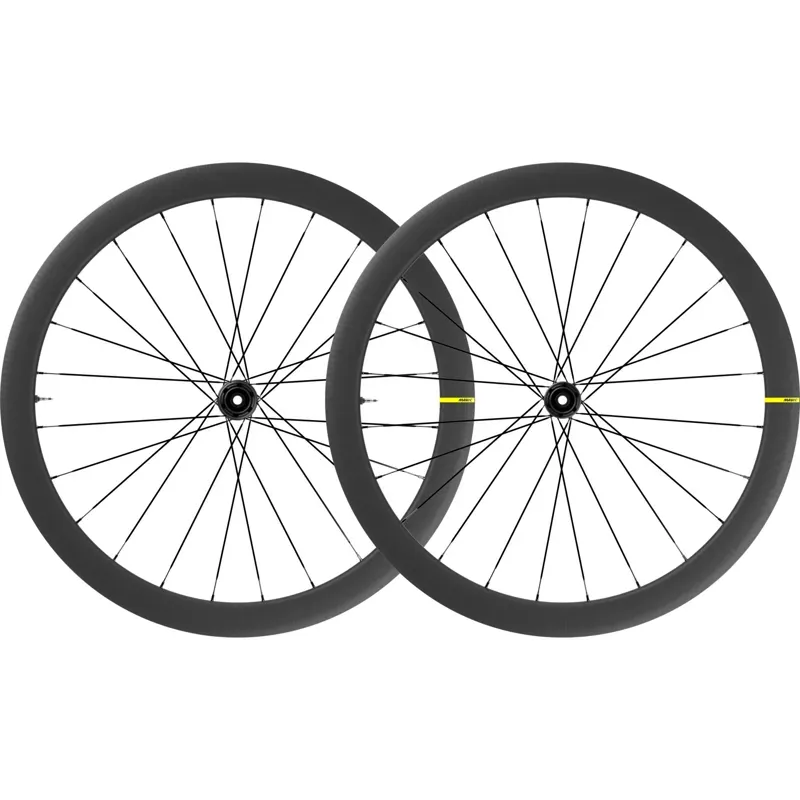

This versatile carbon road wheel is ideal for riders seeking the perfect balance between weight, aerodynamics and efficiency. New spokes and hubs give the cosmic sl 45 disc a light and lively feel for climbing and accelerating.
Aero efficiency, quick acceleration and the improved ride quality of ust tubeless. You get it all with this disc-brake specific wheel featuring easier to use road tubeless technology and lighter weight.
**faster acceleration and climbs**
* 45mm naca inspired rim shape minimises drag for added speed
* flat double butted spokes saves weight and improves responsiveness
* reduced inertia of the lightweight rim delivers instant acceleration.
**versatile performance for all road riding conditions**
* minimal drag, low inertia and high lateral stiffness makes it fast and efficient on all types of terrain, from the flats to mountain climbs
* disc-brake-specific build for improved control and compatibility with 12mm thru axles
**improved ust road delivering speed, comfort and control**
* no tubes means less friction, improved efficiency and grip with reduced risk of punctures
* rim bed shape makes it easier to mount and change tyres
**weight: 1575g**
**understanding the different mavic freehub body acronyms:**
* hg or m11 â Shimano hg road 11/12x (other speeds with spacer)
* ms - Shimano microspline
* xd - SRAM xd
* xd-r - SRAM xd-r
* ed11 - campagnolo 9/12x
* n3w - campagnolo 13x
___
**additional information**
the rim is engineered with a naca rim profile that's 45mm deep and 28mm wide, designed specifically for all-rounder performance on flat or hilly terrain. The rim bed shape makes it easier than ever to fit tubeless and tube-type tyres. Riding ust tubeless means no tube, so no friction, and more air volume means a smoother ride. The result is a faster ride with super low rolling resistance. Refined spokes make this wheelset 80g lighter than its predecessor, the cosmic Pro carbon ust disc. Combined with the infinity hub platform, which makes the wheels feel quick and responsive out of every corner, they are stiffer and more efficient.
This cosmic sl 45 disc is engineered specifically for disc brakes, with an optimized spoke count and lacing. They are offered in centre lock only and are compatible with 12mm thru-axles and can convert to quick release with included adapters. They are available for Shimano cassettes and convert to SRAM xd-r or campagnolo with an optional driver body.
These wheels are designed, engineered and patented by mavic in annecy, france, and are 100% handmade in our european carbon factory.
**technologies**
**instant drive 360 technology**
super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
**ust tubeless technology**
traction control. Ready to ride tubeless system. The ust concept improves traction, control and comfort whilst reducing inertia and flats
**infinity hub design**
an ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear.
**qrm auto bearing preload technology**
qualite de roulements mavic auto. Cartridge bearings are double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
**technical specifications:**
* profile depth: 45mm
* inner width: 19mm
* front axle: 12 x 100mm
* rear axle: 12 x 142mm
* discipline: road
* spokes: steel, straight, extra flat
* rim diameter: 700c
* nipples: steel, abs, black
* rim material: 100% carbon fibre with ud external layer
* tyre compatibility: ust tubeless ready
* maximum weight: 120kg including bike
* braking system: centre lock only
* bearings: qrm automatic setting - sealed cartridge
* etrto size: 622x19tc
* weight: 1575g
**what's in the box?**
* wheelset
* user guide
* rim tape mounted on wheel
* ust valve not mounted on wheel
* front axle adapter: 12x100 convertible to 9x100
* rear axle adapter: 12x142 convertible to 9x135
* multifunction adjustment wrench with the rear wheel
**intended use**
* minimum tyre size: width 23mm - pressure max. 6.75bar/97psi
* maximum tyre size: width 62mm - pressure max. 3.8bar/55psi
* astm category 2 : road and offroad with jumps less than 15cm
