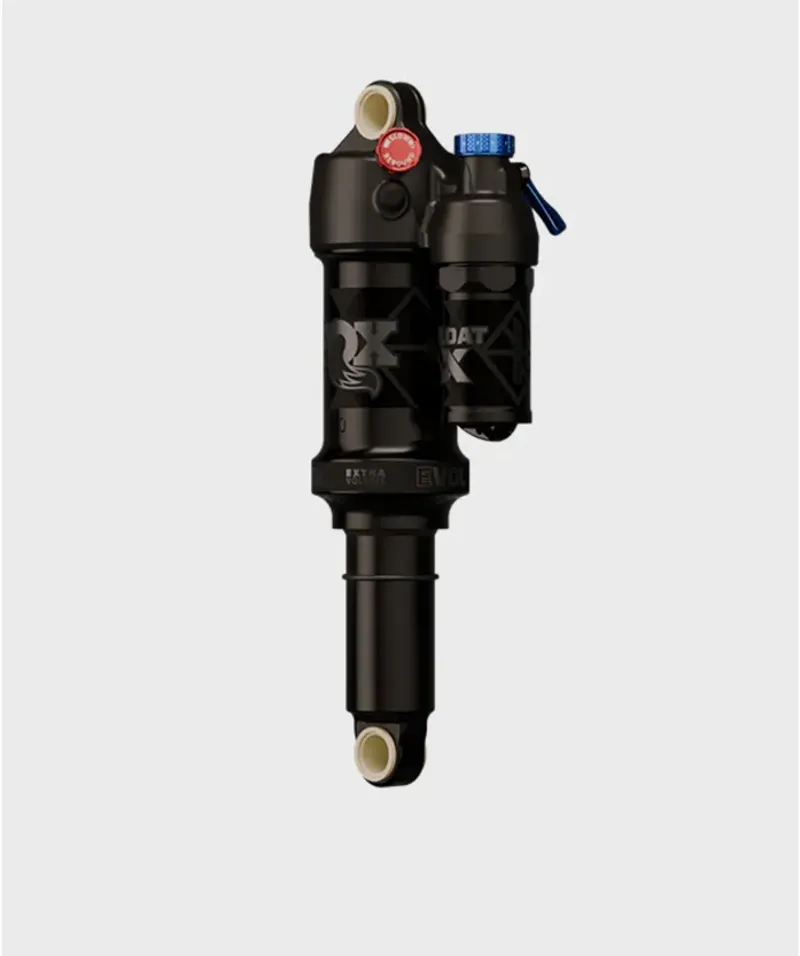

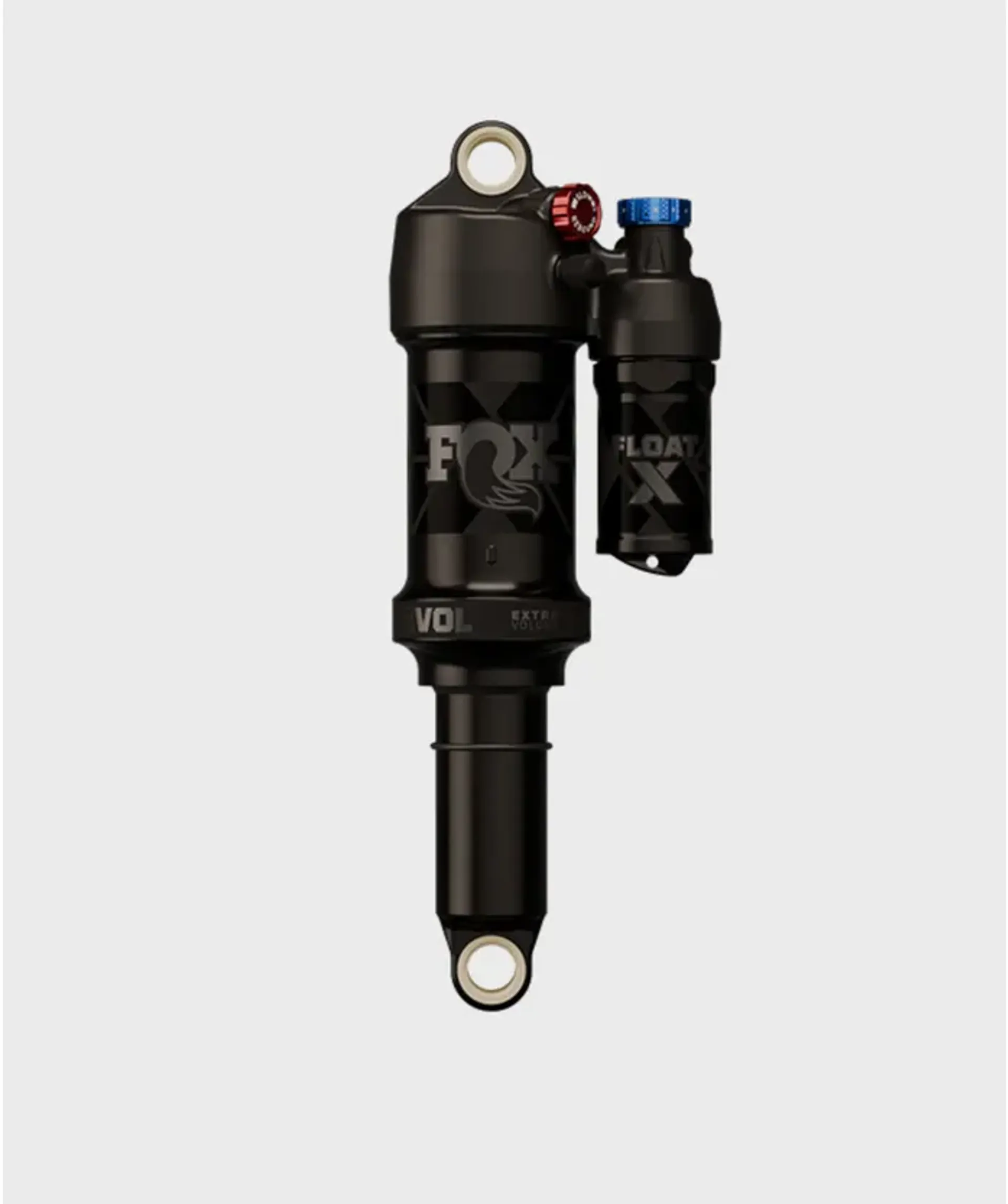

The FOX Float X Performance Elite EVOL LV 2Pos-Adj is a high-performance air rear shock designed primarily for trail and all-mountain bikes.
It combines an EVOL air spring, a piggyback oil reservoir and a two-position compression adjustment for a balance of small-bump sensitivity, support and control on rough terrain.
Technical specifications
Feature | Specification |
|---|
Manufacturer | FOX Factory |
Model | Float X Performance Elite |
Shock type | Air shock with piggyback reservoir |
Air spring | EVOL LV (Extra Volume, Large Volume) |
Damper | Float X adjustable damper |
Compression adjustment | 2-position Open/Firm lever |
Rebound adjustment | External rebound dial |
Air pressure adjustment | Via Schrader valve |
Spring progression | Adjustable using internal volume spacers |
Intended use | Trail / All-Mountain |
Mounting | Eyelet or trunnion, depending on version |
Shock sizing | Frame-specific eye-to-eye and stroke |
Finish | Performance Elite black anodised finish |
How the adjustments work
EVOL LV air spring: The larger-volume air chamber helps the shock respond sensitively to smaller bumps while maintaining support deeper into its travel.
2Pos-Adj compression: Switches between Open mode for descending and Firm mode for climbing. Exact additional compression adjustments depend on the shock's model year and OEM configuration.
Rebound damping: Controls how quickly the shock extends after compression. Slower rebound provides more control but can cause the shock to pack down over repeated bumps.
Volume spacers: Allow the spring's progression to be tuned without changing the initial sag. Adding spacer volume increases bottom-out resistance.
Service information
FOX specifies the following for the 2022-generation Float X:
Item | Specification |
|---|
Full service interval | 125 riding hours |
Damper oil | FOX 4 WT suspension fluid |
Air sleeve lubricant | FOX 20 WT Gold |
IFP reservoir pressure | 150 ± 10 psi (internal service specification) |
Air sleeve seal kit | 803-01-727 |
Air volume tuning kit | 803-01-937 |
These details are generation-specific and should be confirmed against the individual shock's FOX ID before ordering parts or servicing.
