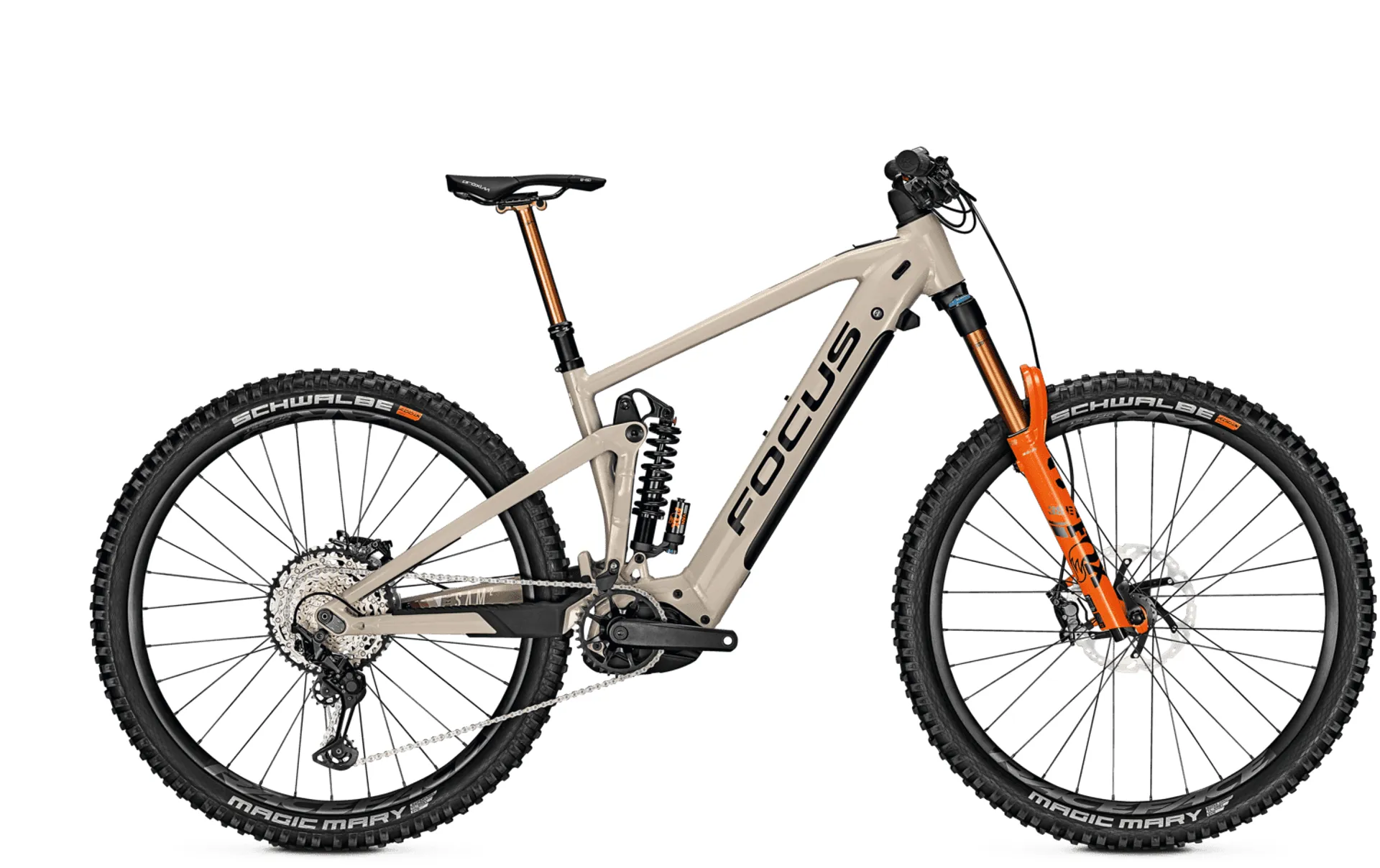

Focus SAM2 6.9 29er Electric Full Suspension MTB 2022

Season:2022

Brand:Focus

Code:SAM2 6.9 29DI 2022

DESIGNED FOR DOWN SUPER POWERFUL AND DYNAMIC E-MOTOR

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION

Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

MADE FOR DOWN

A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. The fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
Technical Information
FRAME MATERIAL: Aluminium
FRAME: 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK: FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel
TRAVEL FORK: 170 mm
SHOCK: FOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm
MOTOR: Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS: 625 Wh
BATTERY AMPERE HOURS: 16,7 Ah
DISPLAY: Bosch Purion
SHIFTER: Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR: Shimano Deore XT M8100, 12-speed
SPROCKET: Shimano SLX M7100, 12-speed
CHAIN: Shimano SLX CN-M7100
CRANKSET: Samox EC40 ISIS
TRANSMISSION OF DRIVE: front: 34, rear: 10-51
BOTTOM BRACKET: Integraded in Drive Unit
HANDLEBAR: RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree
GRIPS: RaceFace Getta Grip
STEM: FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium
HEADSET: Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40
SADDLE: Proxim W350
SEATPOST: FOX Transfer RL Factory, 31,6mm
BRAKES: Shimano XT M8120, 4 piston
BRAKE LEVER DESCRIPTION: Shimano XT M8120, 4 piston
BRAKE: Disc
RIMS: RaceFace AR30 Offset
REAR HUB: Novatec D162 Disc, 12x148 mm
FRONT HUB: Novatec D041, 15x110 mm
TIRES: Schwalbe Magic Mary 2.6 Super Trail Soft
REAR TIRE: Schwalbe Magic Mary 2.6 Super Gravity Soft
GEARS: 12
BIKE WEIGHT INCL. BATTERY IN KG.:
25,95 kg
SIZE: 41,42,49,45
