Overview
This product is best for: Riders of compatible Avinox-powered e-bikes wanting an integrated front light controlled from the bike’s wireless controllers. Suitable for Amflow bikes, may also be suitable for other avinox equiped bikes such as megamo
The main advantage is: Powerful 1,200-lumen high beam without a separate light battery to recharge.
Choose this if: You want bike-powered illumination, high/low beam selection and a compact installation.
This product is not ideal for: Bikes without confirmed Avinox light compatibility or riders wanting a removable, standalone battery-powered light.

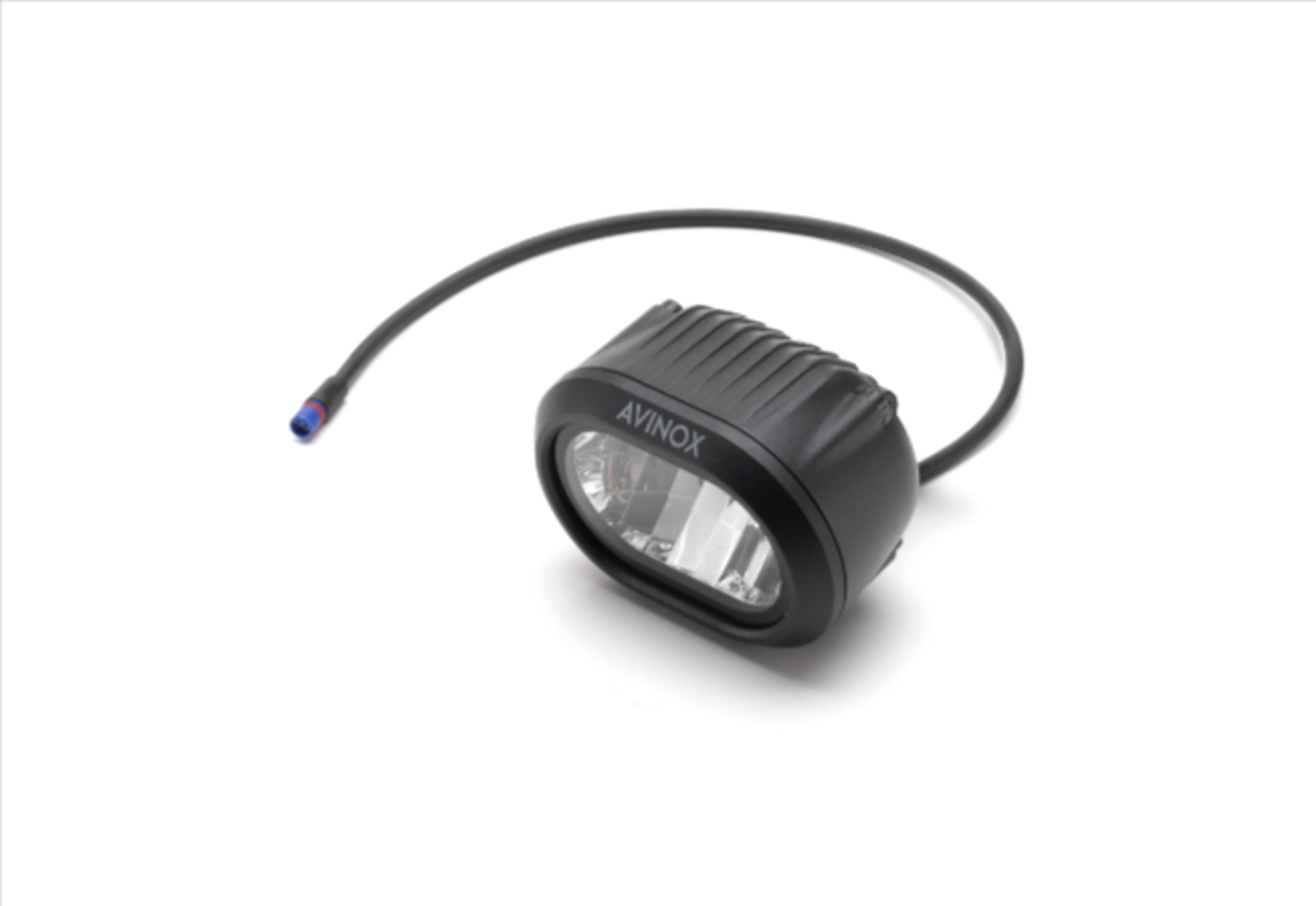

The Avinox Smart Front Light combines focused high-density LED illumination with the Avinox e-bike ecosystem. Switch between its 1,200-lumen high beam and 500-lumen low beam using compatible Avinox Wireless Controllers. The lamp draws power from the bicycle’s main battery, avoiding the need to charge a separate light battery.
Its magnesium-aluminium alloy housing incorporates cooling fins, while the IP56 rating supports use in wet and dusty riding conditions. The compact design measures 69 × 53 × 51mm and weighs 105g.
Best For
Compatible Avinox-powered mountain bikes, evening trail rides, commuting and mixed-surface rides where an integrated e-bike headlight is preferable to a removable accessory light.
Who Is This For?
Riders who want lighting controlled from their existing Avinox cockpit, particularly those who regularly ride as daylight fades or on routes without consistent street lighting.
Rider Profile
Suitable for e-MTB riders and everyday e-bike users who prioritise a tidy installation, dependable bike-powered lighting and convenient beam switching.
How This Fits Your Setup
The Avinox Front Light is part of the bike’s electrical system and must be installed on a compatible bicycle. Avinox identifies the Amflow PL as the first model to support the light, but this does not establish compatibility with every Amflow or Avinox-powered bike. Check your exact model, mounting arrangement, wiring and firmware requirements before purchase.
Amflow sells a Smart Front Light Combo comprising the lamp and installation hardware. Confirm whether this Cyclo Monster listing supplies the full combo or the light only before ordering.
Key Features
- 1,200-lumen high beam and 500-lumen low beam
- Switch lighting modes through compatible Avinox Wireless Controllers
- Powered by the compatible e-bike’s main battery
- High-density LEDs and optimised internal reflector
- Magnesium-aluminium alloy body with cooling fins
- IP56 protection rating
- Compact 69 × 53 × 51mm design
- 105g lamp weight
- Black finish
Real-World Performance
High beam provides 1,200 lumens for darker riding environments, while low beam delivers 500 lumens when less output is appropriate. Amflow specifies 17W consumption in high beam and 7.5W in low beam. Actual battery impact depends on the bike battery, riding conditions and light usage. Use low beam around oncoming traffic and pedestrians in accordance with applicable rules.
Usage Scenarios
Evening e-MTB rides, winter commuting, unlit lanes and shared paths, and everyday rides where integrated lighting is more convenient than carrying a separate lamp.
Comparison
Unlike a self-contained rechargeable front light, the Avinox model takes power from the compatible bicycle battery and uses the Avinox Wireless Controllers. Its integrated design can simplify daily charging routines, but it is not suitable for standalone use or for bikes without the correct electrical and mounting compatibility.
Pros and Cons
Pros: High/low beams, 1,200-lumen maximum output, integrated bike power, wireless control, compact 105g body and IP56 protection.
Considerations: Requires compatible Avinox bike integration; cannot operate independently; fitting hardware and exact bike compatibility should be checked before purchase.
Quick Spec Summary
- Brand: Amflow / Avinox
- Product: Avinox Smart Front Light
- Colour: Black
- High beam: 1,200 lumens
- Low beam: 500 lumens
- High-beam power: 17W
- Low-beam power: 7.5W
- Controls: Avinox Wireless Controllers
- Dimensions: 69 × 53 × 51mm
- Weight: 105g
- Protection: IP56
- Power source: Compatible e-bike main battery
Detailed Specifications
| Product type | Integrated e-bike front light |
|---|
| High-beam brightness | 1,200lm |
|---|
| Low-beam brightness | 500lm |
|---|
| High-beam consumption | 17W |
|---|
| Low-beam consumption | 7.5W |
|---|
| Light technology | High-density LEDs with optimised reflector |
|---|
| Control | Compatible Avinox Wireless Controllers; manual high/low selection |
|---|
| Dimensions | 69 × 53 × 51mm (L × W × H) |
|---|
| Weight | 105g |
|---|
| Housing | Magnesium-aluminium alloy with finned heat dissipation |
|---|
| Protection rating | IP56 |
|---|
| Power | Compatible Avinox-powered bicycle main battery |
|---|
| Standalone operation | Not supported |
|---|
| Mounting hardware | Check exact SKU; official Amflow Combo includes installation kit |
|---|
Is This The Right Product?
Choose this light when your specific Avinox-powered bike supports the front-light integration and you want wireless high/low beam control. If you need a light for a conventional bike or want to remove it and use it separately, choose a standalone rechargeable model instead.
Upgrade Potential
For compatible bikes, the Smart Front Light adds integrated lighting to the Avinox ecosystem. Confirm whether your bike already has the required wireless controllers, mounting points and electrical connections.
What You'll Need
A confirmed compatible Avinox-powered bike, the appropriate fitting hardware and a correctly configured control system. The official Amflow Smart Front Light Combo includes a stem mount adapter, angle-adjustment screw, four spacers, two frame mounting screws, two cable-routing grommets, two cable-port plugs and two grommet-locking screws. Do not assume these parts are included with a light-only SKU.
Alternative Products
For bikes without compatible Avinox lighting integration, consider a separate rechargeable bicycle front light. Explore bike lights at Cyclo Monster, or browse electric bikes for compatible platforms.
Our Take
The Avinox Smart Front Light is a practical option for riders who want their headlight to feel like part of the bicycle rather than an add-on. Its main strengths are integrated power, wireless control and the useful separation between 500-lumen low beam and 1,200-lumen high beam. Confirm the fitting kit and model compatibility before purchase.
Popular Questions
Buyers should check whether the light fits their exact Amflow model, whether the installation kit is included and whether their Avinox Wireless Controllers are already installed and configured.
FAQ
How bright is the light?
1,200 lumens on high beam and 500 lumens on low beam.
Does it have a rechargeable battery?
No. It is powered by the compatible bike’s main battery.
Can I use it off the bike?
No. Amflow states it cannot operate independently.
How is it controlled?
Using compatible Avinox Wireless Controllers.
Can I switch between high and low beam?
Yes, through the Avinox Wireless Controllers.
Does it automatically change brightness?
The official specifications describe manual beam switching; automatic ambient-light adjustment is not confirmed for this product.
Does it fit every Amflow bike?
Do not assume so. Check compatibility with your exact bike model and electrical connections.
Does it work with Avinox M2S bikes?
Motor branding alone does not confirm compatibility; the complete bicycle must support the light.
Is it waterproof?
It has an IP56 protection rating.
What is the weight?
105g.
What are the dimensions?
69 × 53 × 51mm.
How much power does it use?
17W on high beam and 7.5W on low beam.
Does it include the installation kit?
The official Amflow Combo does; the contents of this particular Cyclo Monster SKU should be confirmed.
Can I install it myself?
Installation requires the correct hardware and electrical connections; professional fitting is sensible if you are unsure.
What if the light does not turn on?
Amflow recommends checking operation instructions, updating control-display firmware and inspecting cable connections before seeking support.
Will it affect e-bike range?
It draws power from the bike battery, so lighting consumes some battery energy; the effect varies with use.
Can Cyclo Monster help with compatibility?
Yes. Contact the shop with your exact bike model before ordering.
Ownership Experience
Keep the bike and light connections clean and secure, follow the manufacturer's fitting instructions and update the bike's control-display firmware when required. Temporary lens misting can occur with temperature changes; Amflow recommends switching the light off and allowing it to dry in a suitable environment.
