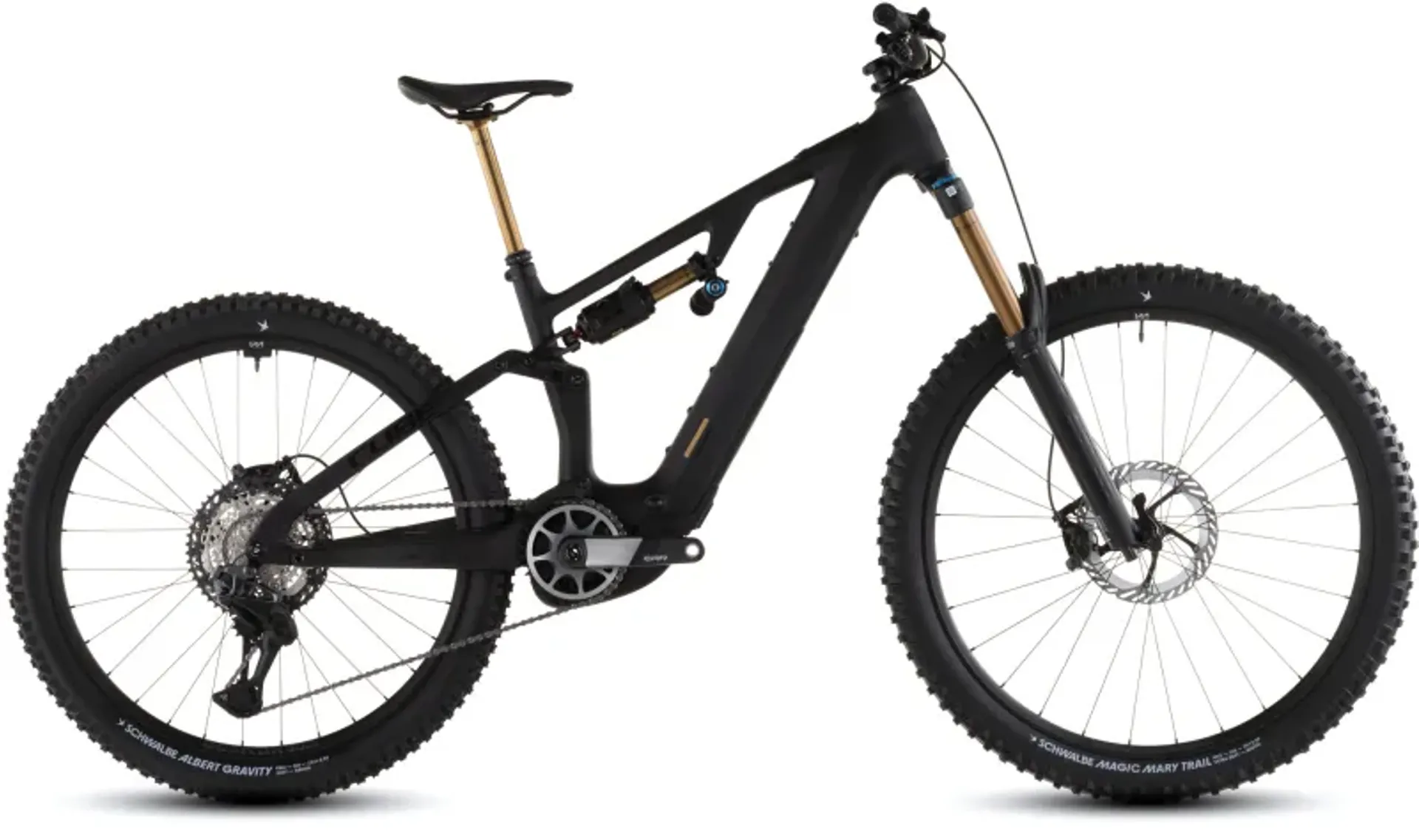

Cube AMS Hybrid 177 c:62 AT 600x eMountain Bike in Carbon/Gold

Season:2026

Brand:Cube

Code:105300CBNGLD

Power up hammer down.

Cube set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. They've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

A bike fit for team riders needs components that'll last the course – literally. That's why, with the AMS Hybrid 177 C:62 AT 600X, Cube started with Fox's smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock. Shimano's electronic XT Di2 1x12 gears – with a RaceFace Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail. There's a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course. A dropper post, naturally. And powerful Shimano XT hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control. The complete package, in other words, for big Alpine days out...

Technical Information
  • Frame
    C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
  • Available Sizes
    S, M, L, XL
  • Suspension fork

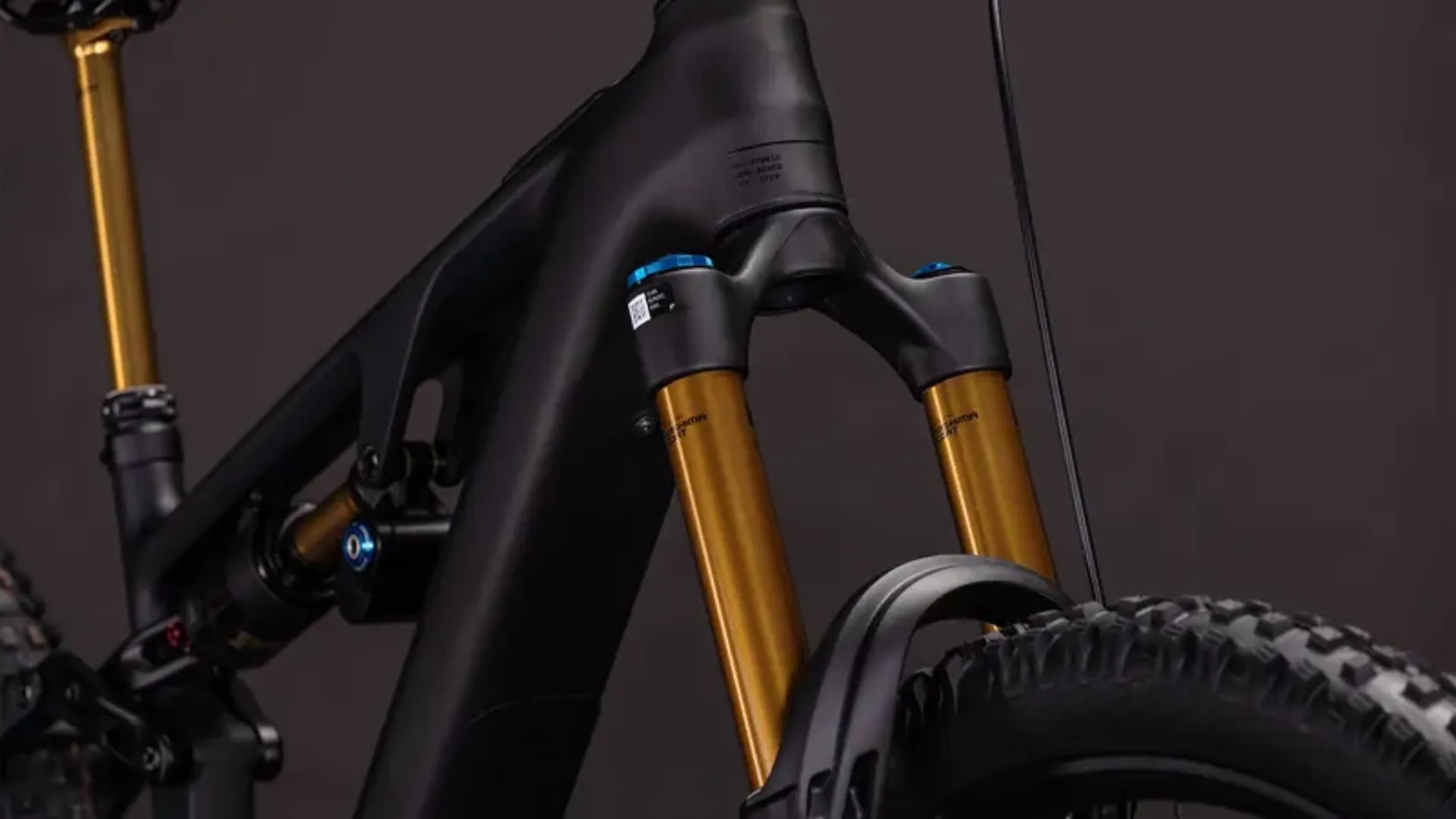

    Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
  • Shock

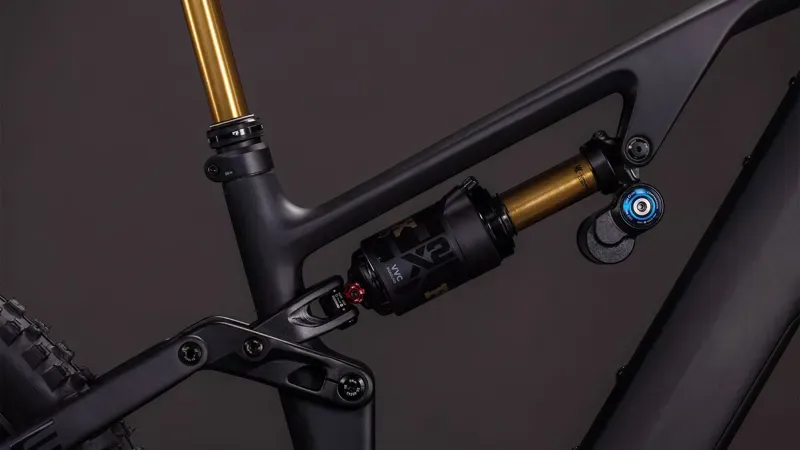

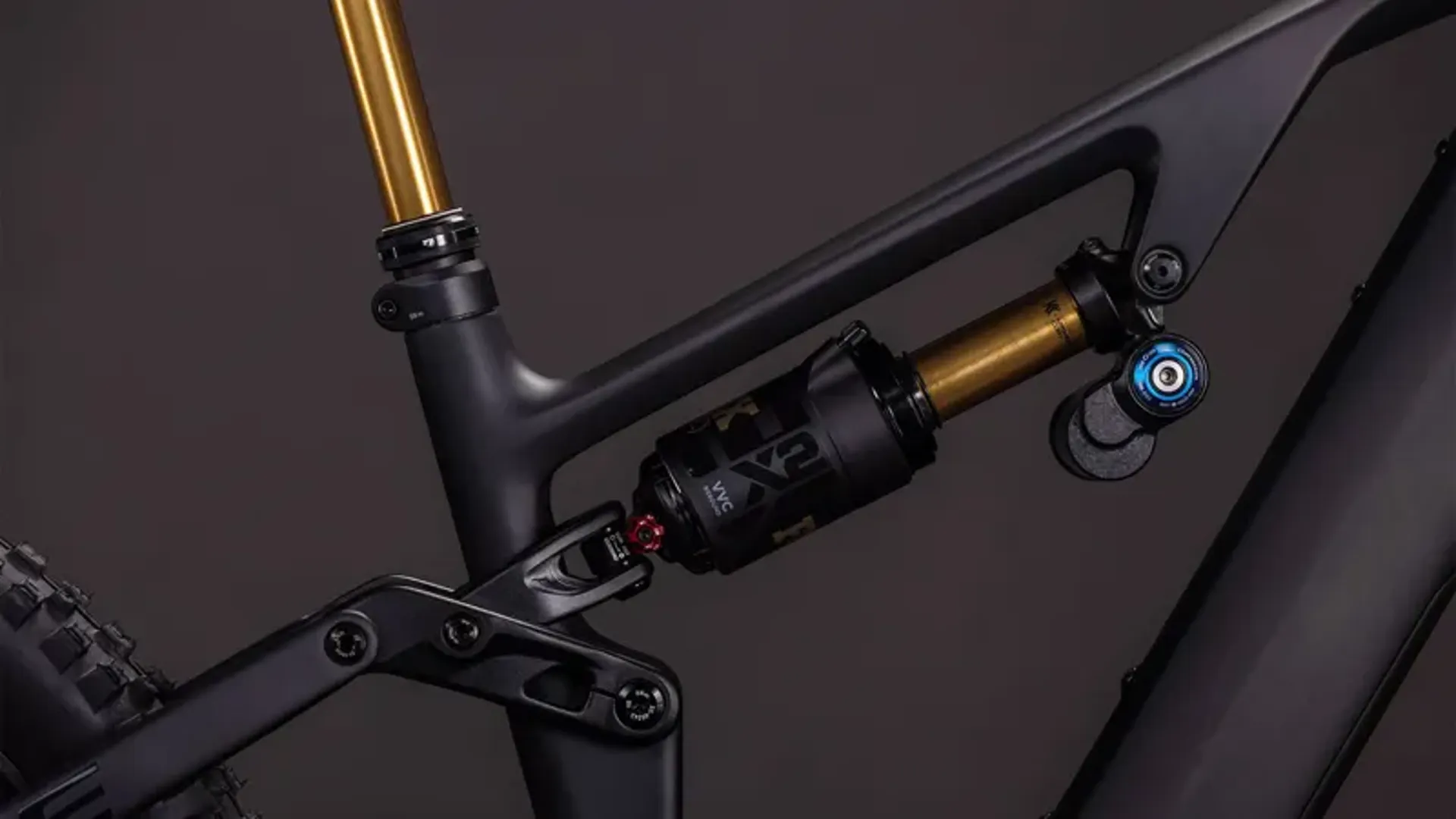

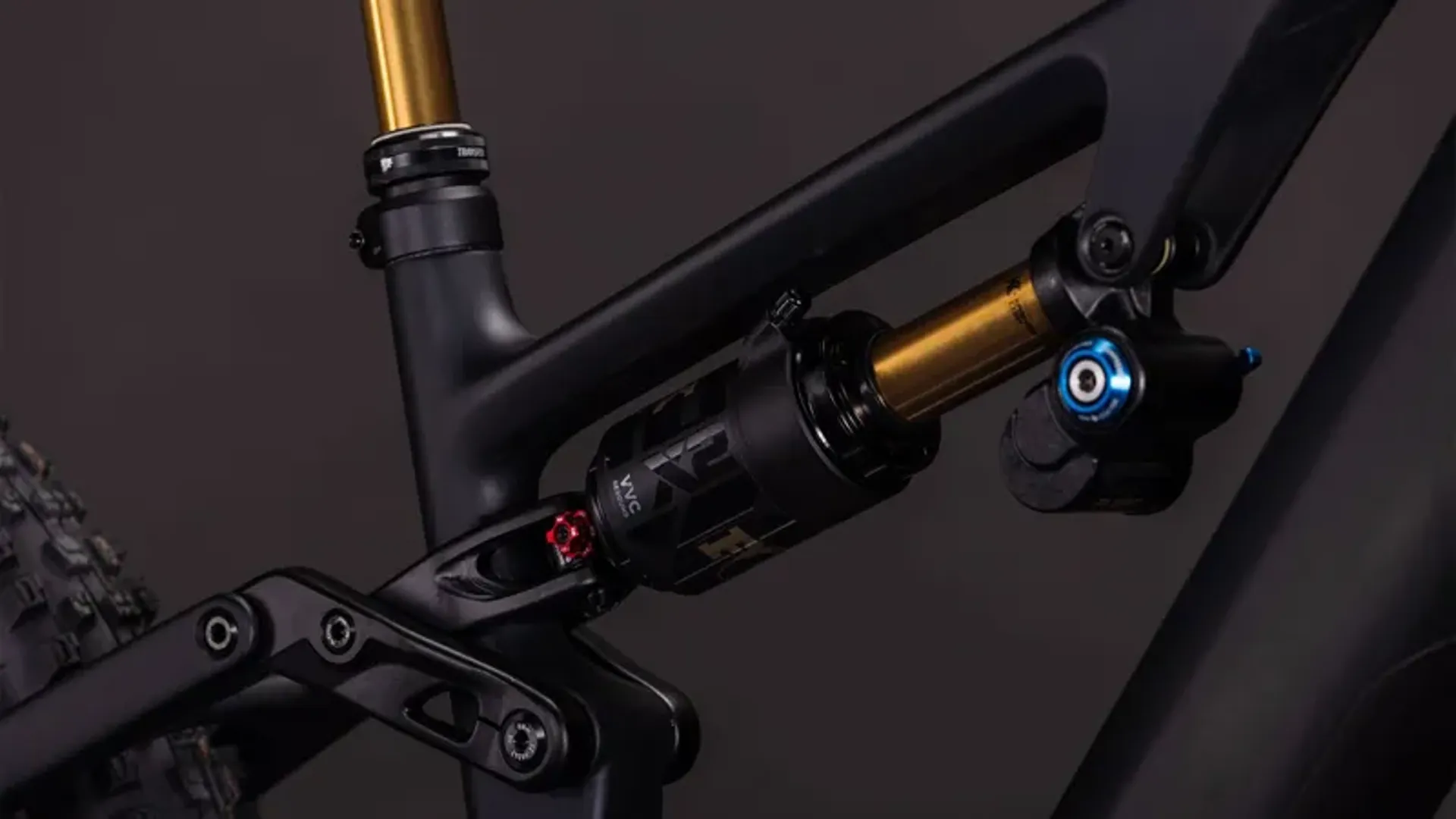

    Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
  • Shock hardware
    Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
  • Drive unit
    Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
  • Remote
    Bosch Mini Remote
  • Battery
    Bosch PowerTube 600
  • Display

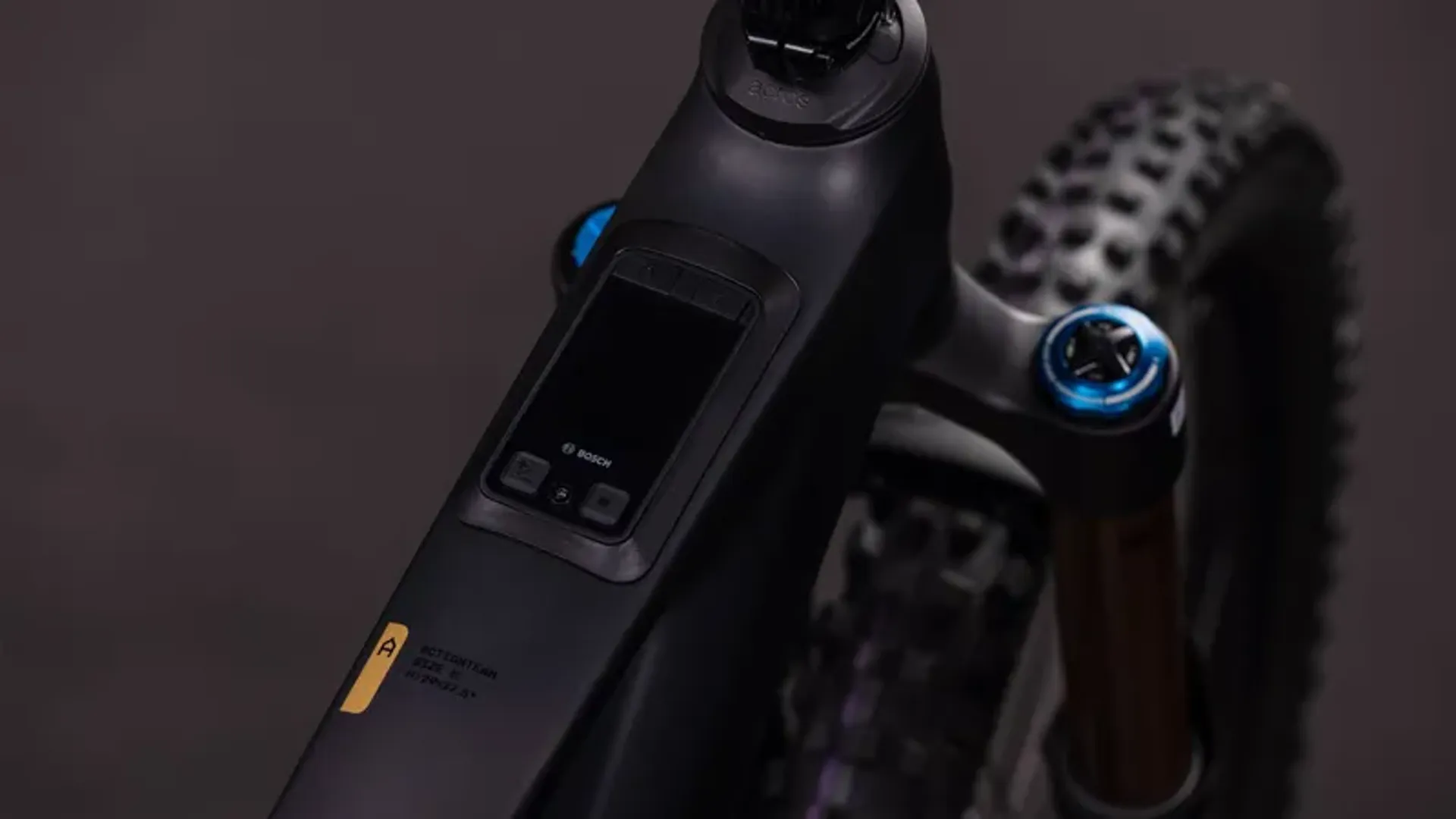

    Bosch Kiox 400C
  • Charger
    Bosch 4A
  • Brake system
    Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
  • Rear derailleur
    Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
  • Shifters
    Shimano XT Di2 SW-M8250-IR, Direct Attach
  • Crankset

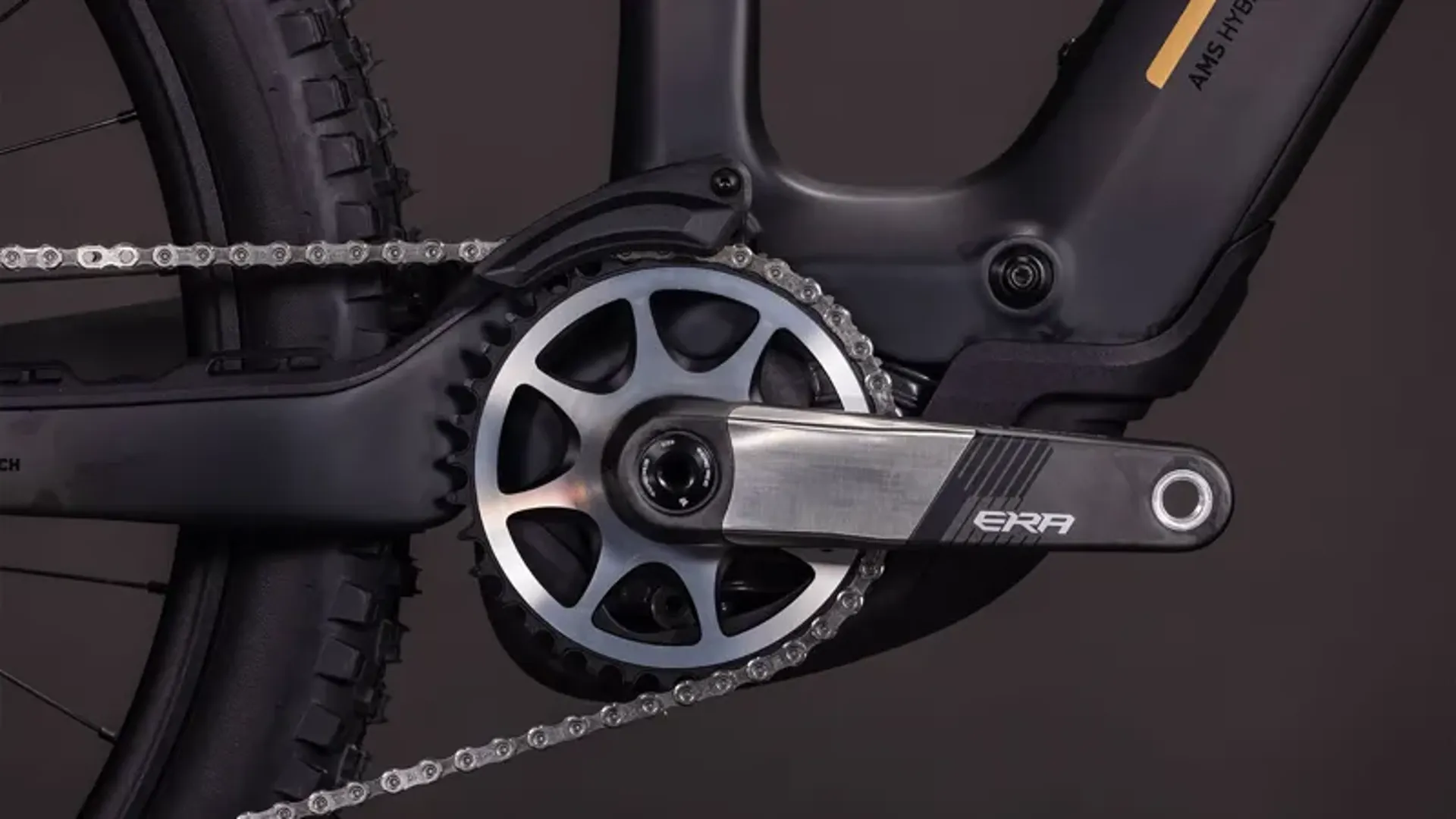

    Race Face ERA E-MTB, 36T
  • Cassette
    Shimano XT CS-M8200, 10-51T
  • Chain
    Shimano XT CN-M8100
  • Chain guide
    Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Headset
    ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
  • Stem
    Race Face Turbine R 35
  • Handlebar
    Race Face ERA 35
  • Grips
    ACID Disrupt, Soft Compound
  • Wheelset
    Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front tyre
    Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
  • Rear tyre
    Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
  • Saddle
    ACID Venec EMTB Trail 140
  • Seat post
    Fox Transfer Factory 31.6mm, Kashima Coated
  • Pedals
    ACID PP MTB
  • Weight
    21,4 kg
