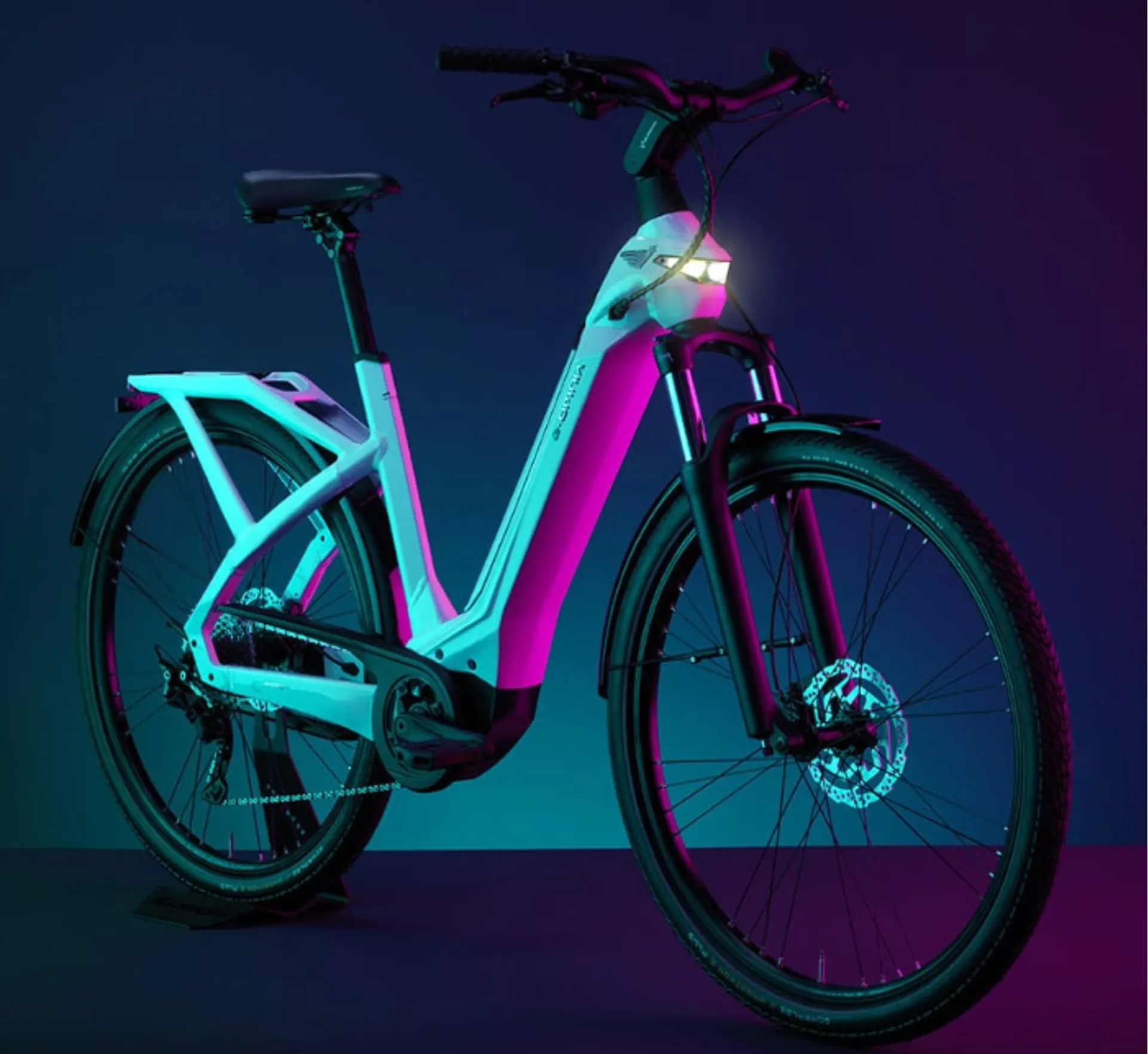

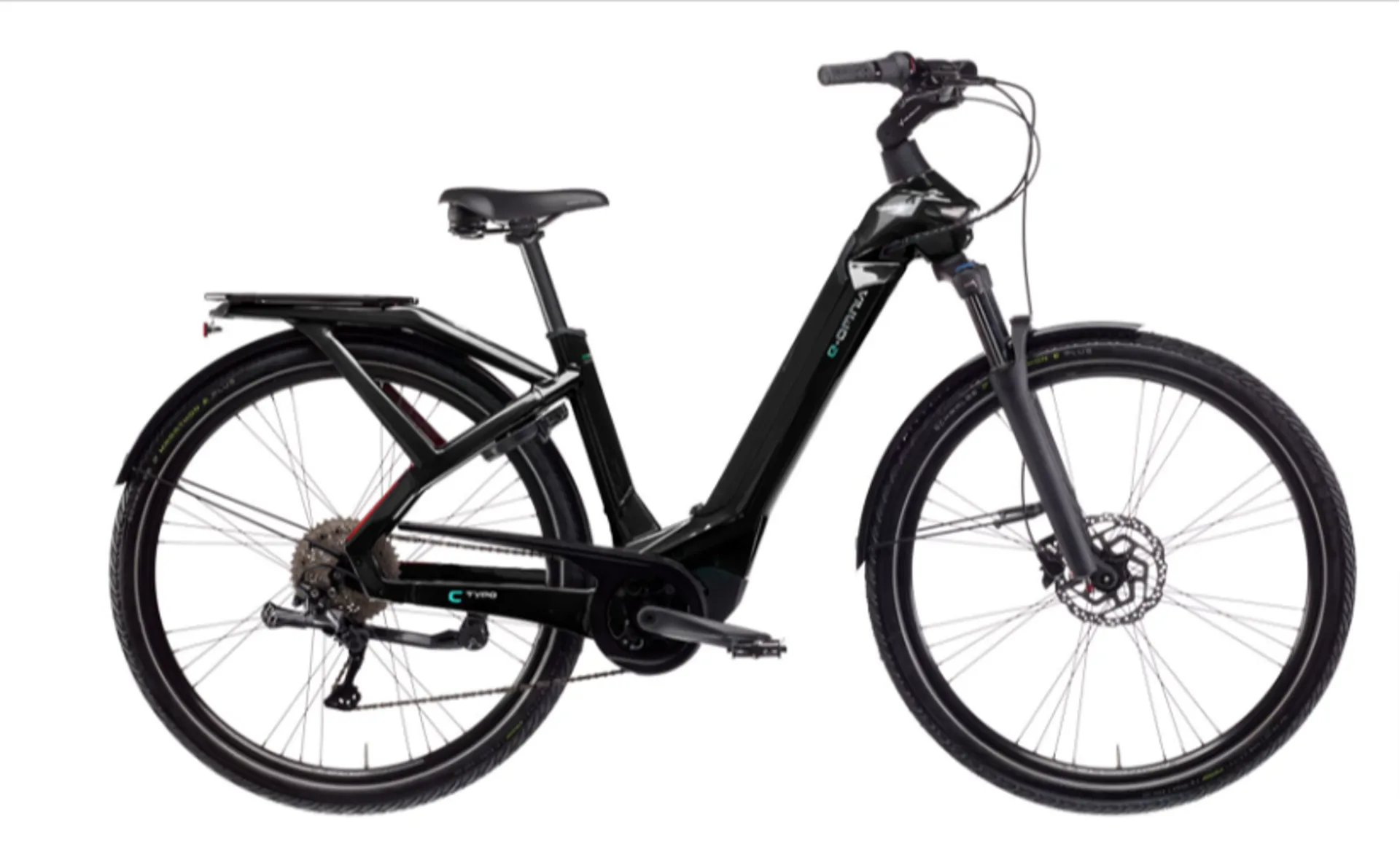

C-Type model, representing the city range, it’s the perfect e-bike for commuting. With a stylish look and feel, it makes the commute both smart and safe.
The C-Type’s frame has been designed with the urban rider in mind. The gravity-cast aluminum frame is clean and elegant, while the stepthrough design allows a rider to climb in and out of the saddle easily, regardless of the clothes they choose to wear. The rider can also make use of a welded rear carrier rack with hooks that are ready for side panniers or a child seat.
The Bosch Performance Line CX Motor unit with 250 watts and an engine torque of 85 Newton-metres is a powerful motor for urban exploring. Four assistance levels, Eco, Tour, eMTB and Turbo cater for a wide range.
The e-Omnia platform harnesses pioneering technology to improve the user’s experience. Integrated lights at the front, sider and rear are a key feature of e-Omnia C-Type, allowing the rider to see and be seen everywhere. The integrated front and rear lights put out 40 Lux, for an impressive visibility-range of 100 metres, and visibility to others at 500 metres
There are many features that help to make the C-Type perfect for the urban environment. Mudguards, chainguard and a kickstand optimise the C-Type for city riding. A clean cockpit is easy to see when cycling and is protected. With the Bosch motor option, the rider can also choose to protect the system from dirt while cutting down noise thanks to the internally geared belt drive
MOTOR UNIT-Bosch Performance Line CX 250W 85NM
BATTERY- Bosch Powertube 625WH

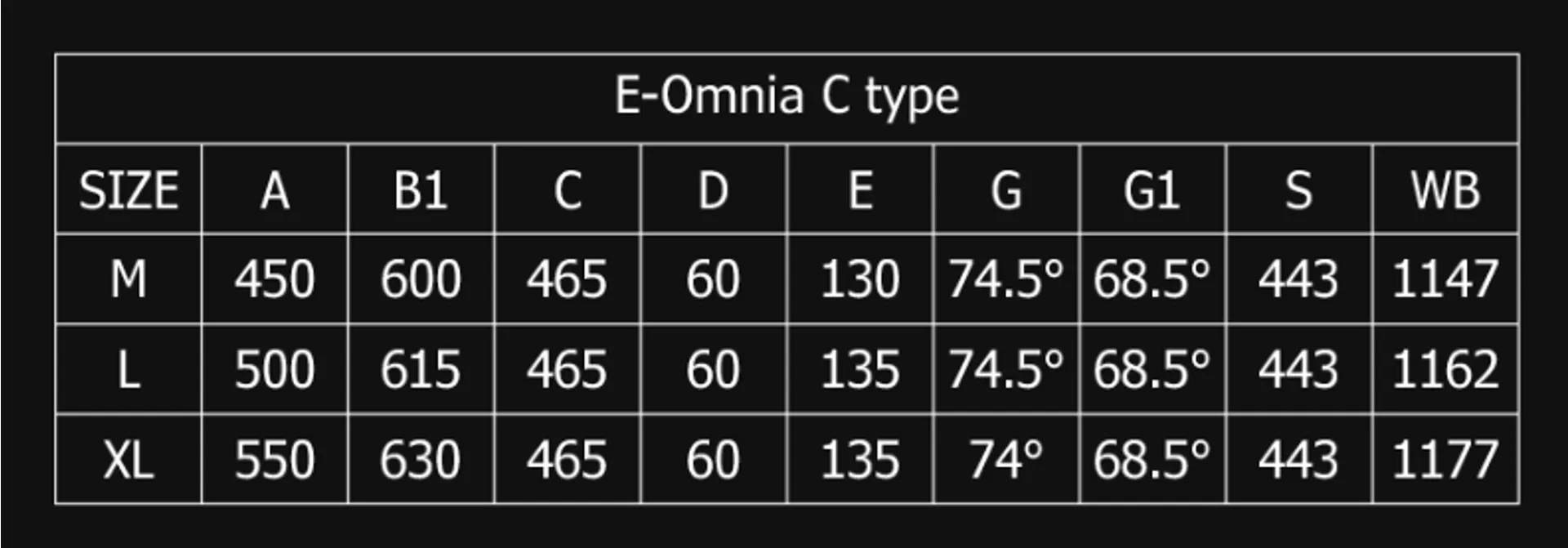

FRAMESET-e-Omnia C Type Step Thru chain drive ALU, 2 size: SM, MD, LG (45-50-55), Ready to fix the chainguard, Post mount 180mm disc brake type, Ready to fix rear kyckstand, custom rearcarrier integrated in the frame, Set dropout (sx+dx) QR 135mm external deraille
FORK-SR Suntour XCM34 Boost LOR DS 29" Travel 100MM
HEADSET-Fsa NO.55R/558 1.5"
SHIFTERS-Shimano Deore SL-M4100-R, 10sp
REAR DERAILLEUR-Shimano RD-M5120, DEORE, SGS 10sp, SHADOW DESIGN
CRANKSET -FSA Metropolis Alloy E-BIKE Specific, Crank Length 170MM, ISIS BB AXLE, W/FSA 38T Steel Megatooth Chainring
BBIncluded w/motor unit
CHAIN -Kmc e10S NPBK Anti-Rust 1/2" x 11/128" EPT
CASSETTE-Shimano DEORE CS-M4100-10, 11-42T
BRAKES-SHIMANO BR-MT200, W/180MM FRONT & REAR ADAPTERS, RESIN PAD
ROTOR-Shimano SM-RT10, diam. 180mm
RIMS-Velomann EBIKE MAXX 29" - 622X25C
REARHUB-Formula CL-1422 CENTER LOCK
TYRE-SCHWALBE MARATHON E-PLUS 55-622 28X2.15
STEM-Velomann 35/31.8mm, lenght: 95mm for Kiox mount
HANDLEBAR-Velomann AL6061, diam. 31.8mm, width 630mm, Rise 34mm, Backsweep 41°
GRIPS-Herrmans Luna Lock
SEATPOST-Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
SADDLE-Velomann A038UE0 Unisex, Rail Elastomer, black steel rail, 256x220
MUDGUARDS-SKS PET Mudguards A65 R
KICKSTAND-Veloman R78 KING EVO REAR MAX 35KG
REARCARRIER-custom rear carrier integrated into the frame design
FRONTLIGHT-Intergrated Custom Front and side light made W/SPANNINGA
REARLIGHT-Spanninga integrated rear lights
